Dive Telemetry
A Kotlin Multiplatform library, desktop app, and CLI tool that converts Shearwater and Garmin dive computer exports into the CSV format used by Telemetry for video overlays.
Source → parse → [DiveLogPlugin chain] → convert (24 cols) → [OutputPlugin chain] → write → SinkThe core converter produces 24 columns. Output plugins add additional columns on demand — up to 49 columns when all three built-in output plugins are enabled.
]
Supported formats
| Format | Input | Parser |
|---|---|---|
| Shearwater CSV | .csv (29 columns) | ShearwaterDiveLogParser |
| Garmin FIT | .fit (binary) | GarminDiveLogParser |
| DAN DL7 | .zxu (text) | Dl7DiveLogParser |
Built-in plugins
| Plugin | Phase | Columns | Description |
|---|---|---|---|
InterpolationPlugin | Pre | — | Resamples dive samples to 1-second intervals |
EnforcePressureUnitPlugin | Pre | — | Forces tank pressure to PSI or BAR |
TechnicalOCPlugin | Post | +16 | NDL state machine, deco tracking, clear, NDL snapshot |
TechnicalCCRPlugin | Post | +8 | Per-sensor PPO2, calibration, diluent PPO2 |
SafetyStopPlugin | Post | +1 | Safety stop countdown timer |
Quick start
bash
# CLI
dive-telemetry --format shearwater dive-log.csv
dive-telemetry --format garmin --technical-oc --technical-ccr --safety-stop dive-log.fit

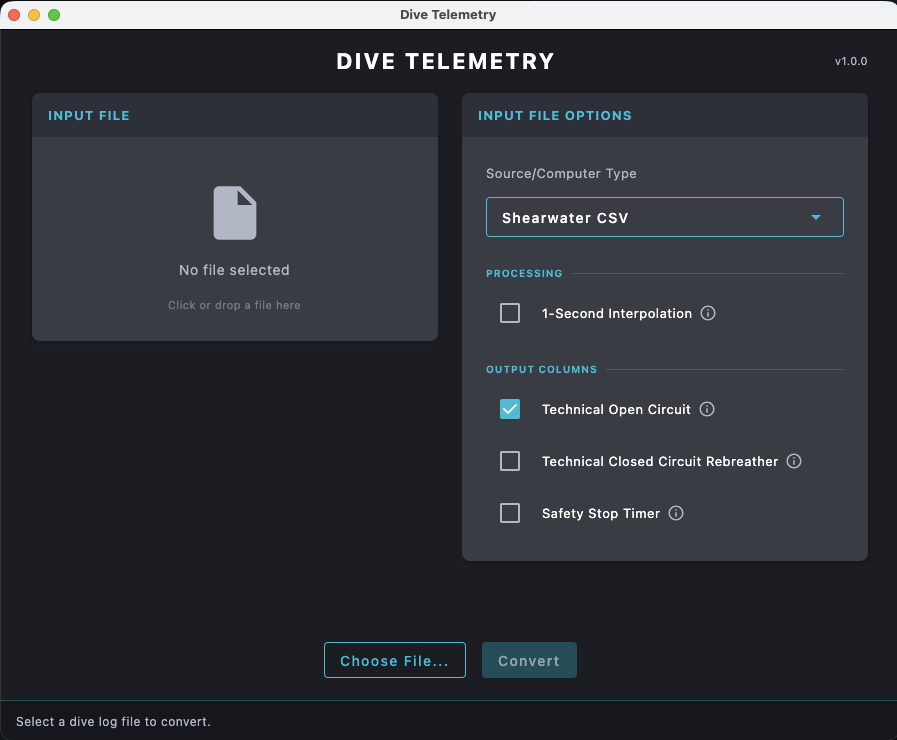

# Desktop app
./gradlew :app:runProject structure
Three Gradle modules:
:lib— Kotlin Multiplatform library (JVM, macosArm64, macosX64, linuxX64, mingwX64):app— Compose Desktop GUI:cli— Kotlin/Native CLI tool (no JVM required at runtime)
Dependencies
| Library | Version | Purpose |
|---|---|---|
| Kotlin Multiplatform | 2.3.10 | Cross-platform compilation |
| Compose Multiplatform | 1.10.1 | Desktop GUI |
| Arrow Core | 2.2.1 | Typed error handling (Raise, Either) |
| Okio | 3.9.1 | Multiplatform buffered I/O |
| Clikt | 5.0.3 | CLI argument parsing |
